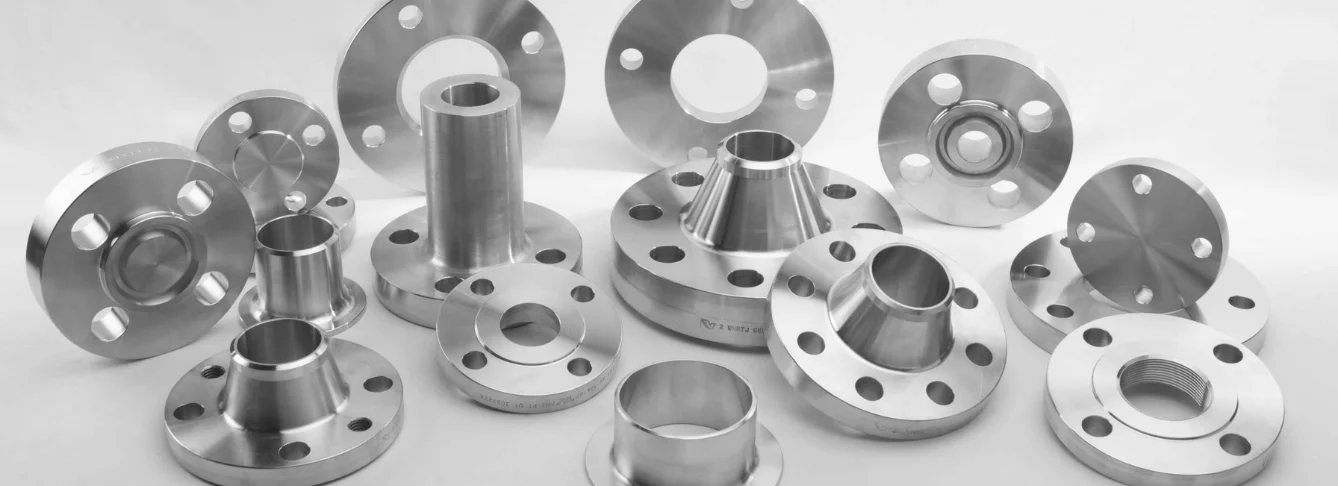

Inconel refers to a wide family of alloys that can differ significantly in both mechanical strength and chemical resistance. When a purchase order arrives without a clearly defined grade, the procurement team may choose the cheapest option available. That choice can result in a flange that passes initial checks but fails once exposed to real operating pressure or temperature. For example, a flange made from Inconel 600 may perform well at extreme furnace temperatures, yet fail in a high‑pressure, corrosive subsea environment where Inconel 625 is actually required. Clearly stating the grade is a critical engineering decision because the wrong alloy can cause gasket leakage, stress cracking, or complete joint failure. Grade selection is a core technical requirement, not just purchasing shorthand; it directly affects the long‑term integrity and safety of the piping system.
The Three Inconel Grades Used in Industrial Flanges and What Differentiates Them
Selecting the correct grade requires understanding how nickel, chromium, and molybdenum interact. These three alloys cover almost all industrial needs, but they are not interchangeable for specific temperature or pressure demands.
Inconel 600 — The High-Temperature Oxidation Grade
This grade provides excellent oxidation resistance up to 1175°C. It is used in furnace flanges and chemical reactors where heat-treating or nitriding atmospheres are present. It is not the best choice for high mechanical loads or chloride environments.
Inconel 625 — The All-Conditions Grade
The addition of molybdenum allows this grade to resist pitting and crevice corrosion from cryogenic levels to 980°C. It is the default for offshore and chemical flanges due to its resistance to chloride stress corrosion cracking.
Inconel 718 — The High-Strength Age-Hardened Grade
This alloy offers the highest tensile strength through precipitation hardening. It is the standard for turbines and aerospace, where yield strength and creep resistance are vital. It is rarely used for general chemical service if 625 is sufficient.
How Application Conditions Determine Grade Selection
Choosing a grade depends on the specific stressors of your piping run. You must evaluate how heat, chemicals, and physical loads interact over the lifespan of the flange.
Temperature Range and Thermal Cycling Behaviour
Inconel expands less than stainless steel, which reduces stress on bolted joints during heat cycles. Inconel 600 handles extreme heat but lacks high strength. Inconel 718 is stronger but limited to temperatures below 1200°F to maintain its mechanical properties.
Corrosive Media: Matching Chemistry to Grade
For hot oxidising gases, Inconel 600 is preferred. When dealing with water or chlorides, use Inconel 625, its molybdenum content resists pitting. Compared to 718, Inconel 625 is better suited for corrosion resistance and costs less.
Mechanical Load and Pressure Class
Inconel handles thermal expansion loads better than steel due to lower expansion rates. For standard pressure, all grades work. If system pressure is extreme and space is limited, the high yield strength of 718 allows for smaller flange dimensions.
Flange Face Type and Gasket Compatibility
Above 500°C, use spiral-wound gaskets with Inconel windings to prevent leaks. RTJ flanges are preferred for high-temperature service because the metal-to-metal seal stays reliable during thermal cycling. Raised face flanges with graphite are only for moderate temperatures.
What the ASME P-T Rating Table Covers and What It Does Not
The ASME B16.5 pressure-temperature rating tables are the starting point for any specification. These tables provide the maximum allowable working pressure for a specific flange class at a given temperature. They allow the flange to withstand the pressure without bursting or leaking statically. These tables are not without limitations. They do not take into account the corrosivity of the fluid. Chemicals can thin the material over time. They also do not account for cyclic thermal loading, which can cause fatigue over many years of operation.
The tables also do not consider bolt load relaxation or gasket creep. Constant heat can stretch the bolts slightly. This reduces the clamping force. The joint can leak even with the pressure and temperature within the ASME limits if the external factors are not taken into account by the engineer. You should use the ASME ratings as a baseline and then apply engineering judgment to account for the specific chemical and mechanical environment of your plant.
Certification and Documentation Buyers Must Request
Getting the right material on site requires strict documentation. You should not accept Inconel flanges without the following paperwork to verify they meet the engineering standards:
- Material Test Report (MTR) to ASTM B564 standards for nickel alloy forgings.
- NACE MR0175/ISO 15156 compliance for any flanges used in sour gas or H2S environments.
- Positive Material Identification (PMI) report to prevent grade mix-ups on site.
- Hydrotest record for pressure containing flanges or prefabricated assemblies.
- The heat treatment records for Inconel 718 show that the particular age-hardening cycle was performed.
Frequently Asked Questions
Can Inconel 625 flanges be used in subsea and deepwater applications?
Yes. Inconel 625 is the usual choice for subsea use. It resists pitting and crevice corrosion in seawater and can handle the very high external pressures in deepwater conditions without losing its performance.
What is the difference between Inconel 625 and Inconel 718 for flange applications?
Inconel 625 flanges are used for strong corrosion resistance and good flexibility. Inconel 718 is used where very high strength and resistance to long-term stress are required in heavy-duty parts.
Do Inconel flanges require special bolt material?
Avoid carbon steel bolts with Inconel flanges because they can fail. Instead, use strong, corrosion‑resistant bolts like Inconel 625 or heavy‑duty stainless steel to match flange performance.
What size range is available for Inconel flanges?
Inconel flanges are generally available from 1/2 inch to 24 inches in standard ASME B16.5 sizes. Larger custom diameters can be forged for specialised industrial reactors or heavy pressure vessels.
Is Inconel 600 still specified in new projects or has it been replaced by 625?
Inconel 600 is still widely used. While 625 is more versatile, 600 is often more cost-effective for high-temperature furnace applications where aqueous corrosion is not a factor, and molybdenum is not required.
