The Starting Point Is Never Preference It Is Process Environment

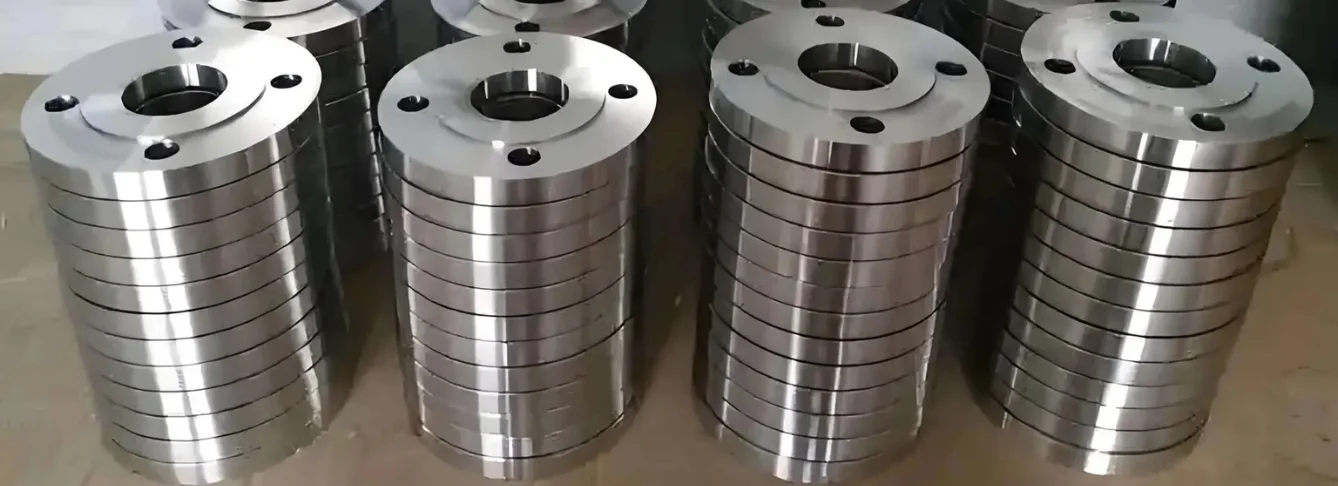

Titanium flanges cost more. That’s the first thing any procurement engineer notices. No one specifies titanium flanges because they prefer them; they specify them because the process environment has made every other option a liability. When conditions are right, titanium is the only sensible answer. When they’re not, it’s an expensive mistake. Understanding the difference is what separates a sound specification from a costly one.
Operating Conditions That Push Buyers Away From Standard Alloys
SS 304, SS 316, and carbon steel flanges cover most industrial applications reliably. But specific conditions push them past their limits. Chloride-induced pitting causes SS 316L to fail in sustained seawater immersion. Concentrated acid streams corrode carbon steel rapidly. Weight-critical aerospace assemblies can’t tolerate the mass penalty of stainless steel. These aren’t edge cases; they’re documented failure modes on live projects.
Seawater and Offshore Piping Systems
Titanium forms a self-healing oxide layer on its surface. In sustained saltwater exposure, that layer continuously regenerates, giving the material effectively unlimited resistance to chloride-driven corrosion. SS 316L, by contrast, suffers pitting and crevice corrosion at flanged joints over time in chloride-rich media, particularly under restricted flow or stagnant seawater. Offshore piping, subsea assemblies, and coastal process plants are environments where this distinction determines service life.
Chemical Processing Lines Carrying Acids
Titanium outperforms most nickel alloys in nitric acid, wet chlorine, and other oxidising media at a lower weight penalty. That’s a detail procurement teams rarely have documented when evaluating alternatives. In lines carrying aggressive oxidising streams, titanium flanges hold up where stainless corrodes and nickel alloys require more expensive upgrades.
Desalination Plant Infrastructure
High-pressure reverse osmosis loops concentrate chloride at flanged joints under repeated thermal cycling, exactly the conditions that cause standard alloy flanges to fail progressively. Titanium handles it without degradation. Flanges up to 48″ NB are available, which matters in desalination plant procurement where large-diameter header reliability determines plant availability.
Aerospace and Weight-Sensitive Assemblies
In aerospace, every gram saved has a measurable system cost. Where titanium and a nickel alloy offer equivalent corrosion performance, titanium wins on mass alone. It’s engineering economics, not preference.
Grade 2 and Grade 5: How Buyers Choose Between Them?
Two grades cover most titanium flange procurement. Grade 2 is commercially pure titanium lower cost and excellent corrosion resistance for most chemical and marine service. Grade 5 (Ti-6Al-4V) is specified when higher strength or elevated temperature capability is needed. The decision rule is simple: corrosion resistance as the primary driver means Grade 2. Strength or thermal performance alongside corrosion resistance means Grade 5.
When Titanium Is the Wrong Answer?
This section matters. Titanium shouldn’t be specified in strongly reducing acid environments, concentrated hydrochloric acid without oxidising agents will corrode it. High-temperature dry fluorine service is also outside its capability. In cryogenic extremes where toughness data is limited, other materials are better documented. Specifying titanium in these conditions creates new failure modes. Honest specification means knowing when to stop.
What the Total Cost Argument Actually Looks Like?
The unit price comparison is the wrong frame. A titanium flange costs more upfront. But the lifecycle calculation shifts when unplanned maintenance, shutdown frequency, and replacement intervals enter the picture. A flange that lasts the full plant lifecycle saves not just the replacement cost but also the shutdown, the inspection, the labour, and lost production. For a procurement committee, the question is, what does one unplanned shutdown cost compared to the titanium premium? In most high-criticality applications, the answer justifies the specification.
Conclusion
Titanium flanges earn their specification through process logic, not preference. When the environment demands sustained corrosion resistance, low mass, or both and standard alloys have a documented failure history, then titanium is the right answer. Evaluate your process conditions, assess the lifecycle cost honestly, and source from a supplier with the technical knowledge to match the grade to your application. Contact Metracore Alloys to discuss your titanium flange requirements.
Frequently asked questions
Are titanium flanges available in the same pressure classes as stainless steel flanges?
Yes. Titanium flanges are manufactured to ASME B16.5 and B16.47, covering Class 150 through Class 2500, the same pressure classes as stainless steel. Large-diameter options up to 48″ NB are available for process plant headers.
What certifications should I ask for when sourcing titanium flanges?
Request mill test certificates (EN 10204 3.1 minimum) confirming chemical composition and mechanical properties. For critical service, EN 10204 3.2 with third-party-witnessed testing is advisable. Confirm ASTM B381 compliance and request full heat traceability.
Can titanium flanges be used in food-grade or pharmaceutical applications?
Yes. Titanium is biocompatible, non-toxic, and resistant to cleaning agents and sterilisation media, a practical choice where both corrosion resistance and product purity are required.
How do I choose between Grade 2 and Grade 5 for my application?
If corrosion resistance is the primary requirement marine, chemical, desalination Grade 2 is sufficient and more economical. If the application needs higher mechanical strength or elevated temperatures, specify Grade 5. Share your full process conditions with your supplier before deciding.
