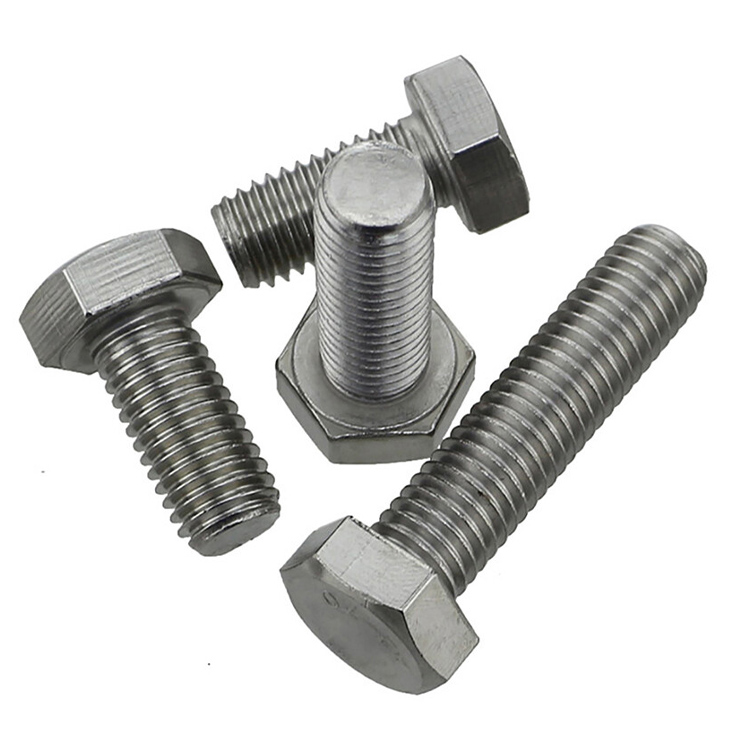

Hastelloy C2000 Fasteners

Hastelloy C2000 fasteners are made from a nickel-based alloy known for excellent corrosion resistance in strong oxidizing and reducing environments. This grade is based on nickel, with extra strength and durability from molybdenum, chromium, iron, and tungsten. It provides yield strength of 310 MPa, tensile strength of 690 MPa, and elongation of 45%. Metracore Alloys is a leading Hastelloy C2000 fastener manufacturer in India with strict quality checks to ensure high performance in critical industries.

Hastelloy C2000 Fasteners, Hastelloy C2000 Fasteners Suppliers, Hastelloy C2000 Fasteners Manufacturers, Hastelloy C2000 Bolts

Our Hastelloy C2000 bolts, nuts, screws, and washers come in both standard and customized sizes. Bolt and screw sizes vary from M3 to M56, and washers and nuts are also available in the same range. Machine screws come in M1.6 to M12, and self-tapping screws from No.2 to No.14. Lengths vary from 3 mm to 200 mm. We also provide various surface coatings such as PTFE, phosphate, Teflon, zinc, and hot-dip galvanizing to improve life and performance. We follow global standards like DIN 931 and B18.3 to maintain accuracy in dimensions.

Hastelloy C2000 fasteners are used in chemical processing plants, marine engineering, pollution control equipment, and pharmaceutical systems where resistance to strong acids and oxidizing agents is vital. They perform reliably in reactors, heat exchangers, pipelines, pumps, and scrubbers because of their ability to resist pitting, crevice attack, and stress corrosion cracking. Their strength and durability make them ideal for equipment exposed to harsh chemicals, high pressure, and seawater environments.

Hastelloy C2000 Fasteners Manufacturers In India, Hastelloy C2000 Nuts, Hastelloy C2000 Screws, Hastelloy C2000 Washers

We provide Hastelloy C2000 fasteners with certifications like EN 10204 3.1/3.2, NACE MR0175, and ASTM standards to assure quality and compliance. Third-party inspection reports are also prepared per the client’s request. To avoid damage during shipment and ensure safe delivery, all bolts, nuts, screws, and washers are packaged in strong hardwood boxes, cartons, or pallets with correct labeling.

Get the Latest Price

Table of Content

Hastelloy C2000 Fasteners Specification

Types of Hastelloy C2000 Fasteners

Reach out to Metracore Alloys for reliable Hastelloy C2000 Fasteners solutions

Technical Details of Hastelloy C2000 Fasteners

Equivalent Grades of Hastelloy C2000 Fasteners

STANDARD	UNS	WNR.
Hastelloy C2000	N06200	2.4675

Chemical Composition of Hastelloy C2000 Fasteners

Grade	Ni	Mo	Cr	Fe	W	Co	Mn	C	V	P	Si
Hastelloy C2000	Remainder	15.0-17.0	14.5-16.5	4.0-7.0	3.0-4.5	2.5 max	1.0 max	.01 max	.35 max	.04 max	.08 max

Mechanical Properties of Hastelloy C2000 Fasteners

Yeild strength	Tensile strength	Elongation
Min 0.2% Mpa	Min Mpa	Min %
310	690	45

Dimensions of Hastelloy C2000 Bolts Fasteners

Nominal Size Of D	Diameter Of Body		ASTM A193 Head Thickness		ASTM A193 Flats Acro		ASTM A193 Corners Acro
	D (MAXIMUM)	D (MINIMUM)	H (MAXIMUM)	H (MINIMUM)	F (MAXIMUM)	F (MINIMUM)	C (MAXIMUM)	C (MINIMUM)
m10	10.00	9.78	6.63	6.17	17.00	15.73	18.48	17.77
m12	12.00	11.73	7.76	4.24	19.00	17.73	20.78	20.03
m14	14.00	13.73	9.09	8.51	22.00	20.67	24.25	23.35
m16	16.00	15.73	10.32	9.68	24.00	23.67	27.71	26.75
m20	20.00	19.67	12.88	12.12	30.00	29.16	34.64	32.95
m24	24.00	23.67	15.44	14.56	36.00	35.00	41.57	39.55
m30	30.00	29.67	19.48	17.92	46.00	45.00	53.12	50.85
m36	36.00	35.61	23.38	21.63	55.00	53.80	63.51	60.79
m42	42.00	41.38	26.97	25.03	65.00	62.90	75.06	71.71
m48	48.00	47.38	31.07	28.93	75.00	72.60	86.60	82.76
m56	56.00	55.26	36.2	33.80	85.00	82.20	98.15	93.71
m64	64.00	63.26	41.32	38.68	95.00	91.80	109.70	104.65
m72	72.00	71.26	46.45	43.55	105.00	101.40	121.24	115.60
m80	80.00	79.26	51.58	48.42	115.00	111.00	132.72	126.54
m90	90.00	89.13	57.74	54.26	130.00	125.50	150.11	143.07
m100	90.00	99.13	63.9	60.10	145.00	140.00	167.43	159.60

Hastelloy C2000 Nuts Fasteners Dimensions

Nominal Size Of Thread Diameter		F			G		H
		Across Flats Width			Across Corners Width		Thickness Row
		Basic	Maximum	Minimum	Maximum	Minimum	Basic	Maximum	Minimum
1/4	.2500	7/16	.438	.428	.505	.488	7/32	.226	.212
5/16	.3125	1/2	.500	.489	.577	.557	17/64	.273	.258
3/8	.3750	9/16	.562	.551	.650	.628	21/64	.337	.479
7/16	.4375	11/16	.688	.675	.794	.768	3/8	.385	.365
1/2	.5000	3/4	.750	.736	.866	.840	7/16	.448	.427
9/16	.5625	7/8	.875	.861	1.010	.982	31/64	.496	.473
5/8	.6250	15/16	.938	.922	1.083	1.051	35/64	.559	.535
3/4	.7500	1-1/8	1.125	1.088	1.299	1.240	41/64	.665	.617
7/8	.8750	1-5/16	1.312	1.269	1.516	1.447	3/4	.776	.724
1	1.0000	1-1/2	1.500	1.450	1.732	1.653	55/64	.887	.831
1-1/8	1.1250	1-11/16	1.688	1.631	1.949	1.859	31/32	.999	.939
1-3/8	1.3750	2-1/16	2.062	1.994	2.382	2.273	1-11/64	1.206	1.138
1-1/2	1.500	2-1/4	2.250	2.175	2.598	2.480	1-9/32	1.ASTM A194 GR. 8	1.245
1-5/8	1.6250	2-7/16	2.438	2.356	2.815	2.686	1-25/64	1.429	1.353
1-3/4	1.7500	2-5/8	2.625	2.538	3.031	2.893	1-1/2	1.540	1.460
2	2.0000	3	3.000	2.900	3.464	3.306	1-23/32	1.763	1.675
2-1/4	2.2500	3-3/8	3.375	3.263	3.897	3.719	1-15/16	1.986	1.890
2-1/2	2.5000	3-3/4	3.750	3.625	4.330	4.133	2-5/32	2.209	2.105
2-3/4	2.7500	4-1/8	4.125	3.988	4.763	4.546	2-3/8	2.431	2.319

Hastelloy C2000 Flat Washers Fasteners Dimensions

Bolt Size	USS			SAE
Bolt Size	ID (in.)	OD (in.)	Thickness	ID (in.)	OD (in.)	Thickness
5/32 (#8)	–	–	–	0.188	0.438	.036/.065
1/8 (#6)	–	–	–	0.156	0.375	.036/.065
7/32 (#12)	–	–	–	0.250	0.562	.051/.080
3/16 (#10)	0.250	0.560	.036/.065	0.220	0.500	.036/.065
1/4 (#14)	0.312	0.734	.051/.080	0.281	0.625	.051/.080
3/8	0.438	1.000	.064/.104	0.406	0.812	.051/.080
5/16	0.375	0.875	.064/.104	0.344	0.688	.051/.080
7/16	0.500	1.250	.064/.104	0.469	0.922	.051/.080
9/16	0.625	1.469	.086/.132	0.594	1.156	.074/.121
1/2	0.562	1.375	.086/.132	0.531	1.062	.074/.121
5/8	0.688	1.750	.108/.160	0.656	1.312	.074/.121
7/8	0.938	2.250	.136/.192	0.938	1.750	.108/.160
3/4	0.812	2.000	.122/.177	0.812	1.469	.108/.160
1	1.062	2.500	.136/.192	1.062	2.000	.108/.160
1 1/4	1.375	3.000	.136/.192	1.375	2.500	.136/.192
1 1/8	1.250	2.750	.136/.192	1.250	2.250	.108/.160
1 3/8	1.500	3.250	.153/.213	1.500	2.750	.136/.213
3	3.125	5.500	.249/.327	–	–	–
1 5/8	1.750	3.750	.153/.213	–	–	–
1 1/2	1.625	3.500	.153/.213	1.625	3.000	.153/.213
1 3/4	1.875	4.000	.153/.213	–	–	–
2	2.125	4.500	.153/.213	–	–	–
1 7/8	2.000	4.250	.153/.213	–	–	–
2 1/2	2.625	5.000	.210/.280	–	–	–
2 1/4	2.375	4.750	.320/.248	–	–	–
2 3/4	2.875	5.250	.228/.410S	–	–	–

Weight Chart Of Hastelloy C2000 Fasteners

APPROX WEIGHT IN K.G. PER 1000 PIECE
Size	M10	M12	M16	M18	M20	M22	M24	M27	M30	M33	M36	M39	M42	M45	M48	M52	M56	M60	M64	M72
50	40.60	57.02	107.00	139.00	178.25	222.00	265.00	390.00	513.25	648.00	795.00	–	–	–	–	–	–	–	–	–
55	43.70	61.42	114.00	147.00	188.50	235.00	283.00	410.00	538.50	676.00	835.00	–	–	–	–	–	–	–	–	–
60	46.80	65.82	121.00	155.00	198.75	248.00	301.00	430.00	563.75	704.00	875.00	1087.00	–	–	–	–	–	–	–	–
65	49.90	70.22	128.00	163.00	209.00	261.00	319.00	450.00	589.00	732.00	915.00	1134.00	–	–	–	–	–	–	–	–
70	53.00	74.62	136.00	171.00	219.25	274.00	337.00	470.00	614.25	760.00	955.00	1181.00	1390.00	–	–	–	–	–	–	–
75	56.10	79.02	144.00	179.00	229.50	287.00	355.00	490.00	639.50	788.00	995.00	1228.00	1445.00	–	–	–	–	–	–	–
80	59.20	83.42	152.00	187.00	239.75	300.00	373.00	510.00	664.75	821.00	1035.00	1275.00	1500.00	1900.00	–	–	–	–	–	–
85	62.30	87.82	160.00	195.00	250.00	313.00	391.00	531.00	690.00	854.00	1075.00	1322.00	1555.00	1945.00	–	–	–	–	–	–
90	65.40	92.22	168.00	203.00	260.25	326.00	409.00	552.00	716.50	887.00	1115.00	1369.00	1610.00	1990.00	2220.00	–	–	–	–	–
95	68.50	96.62	176.00	211.00	270.50	339.00	427.00	573.00	743.00	920.00	1155.00	1416.00	1665.00	2035.00	2290.00	–	–	–	–	–
100	71.60	101.02	184.00	219.00	280.75	352.00	445.00	594.00	769.50	953.00	1195.00	1463.00	1720.00	2080.00	2360.00	2640.00	3400.00	–	–	–
110	77.80	110.00	200.00	237.00	301.25	377.00	481.00	636.00	824.75	1023.00	1250.00	1530.00	1824.00	2170.00	2500.00	2810.00	3590.00	4240.00	4910.00	–
120	84.00	119.00	216.00	253.00	321.75	402.00	517.00	678.00	880.00	1093.00	1330.00	1620.00	1928.00	2260.00	2640.00	2980.00	3780.00	4460.00	5160.00	6820.00
130	90.20	127.80	232.00	269.00	342.25	427.00	553.00	720.00	935.25	1163.00	1410.00	1710.00	2032.00	2350.00	2780.00	3150.00	3970.00	4680.00	5410.00	7130.00
140	96.40	136.60	248.00	285.00	362.75	452.00	589.00	762.00	990.25	1233.00	1490.00	1800.00	2136.00	2440.00	2920.00	3320.00	4160.00	4900.00	5660.00	7440.00
150	102.60	145.40	264.00	301.00	383.25	477.00	625.00	804.00	1045.75	1303.00	1570.00	1890.00	2240.00	2530.00	3060.00	3490.00	4350.00	5120.00	5910.00	7750.00
160	108.80	154.20	280.00	317.00	403.75	502.00	661.00	846.00	1101.00	1373.00	1650.00	1980.00	2344.00	2620.00	3200.00	3660.00	4540.00	5340.00	6160.00	8060.00
170	115.00	163.00	296.00	333.00	424.25	527.00	697.00	888.00	1156.25	1443.00	1730.00	2070.00	2448.00	2710.00	3340.00	3830.00	4730.00	5560.00	6410.00	8370.00
180	121.20	172.00	312.00	349.00	444.75	552.00	733.00	930.00	1211.50	1513.00	1810.00	2160.00	2552.00	2800.00	3480.00	4000.00	4920.00	5780.00	6660.00	8680.00
190	127.40	181.00	328.00	365.00	465.25	577.00	769.00	972.00	1266.75	1583.00	1890.00	2250.00	2656.00	2890.00	3620.00	4170.00	5110.00	6000.00	6910.00	8990.00
200	133.60	190.00	344.00	381.00	485.75	602.00	805.00	1014.00	1322.00	1653.00	1970.00	2340.00	2760.00	2980.00	3760.00	4340.00	5300.00	6220.00	7160.00	9300.00
210	139.80	199.00	360.00	397.00	506.25	627.00	841.00	1056.00	1377.25	1723.00	2050.00	2430.00	2864.00	3070.00	3900.00	4510.00	5490.00	6440.00	7410.00	9610.00
220	146.00	208.00	376.00	413.00	526.75	652.00	877.00	1098.00	1432.50	1793.00	2130.00	2520.00	2968.00	3160.00	4040.00	4680.00	5680.00	6660.00	7660.00	9920.00
230	152.20	217.00	392.00	429.00	547.25	677.00	913.00	1140.00	1487.75	1863.00	2210.00	2610.00	3072.00	3250.00	4180.00	4850.00	5870.00	6880.00	7910.00	10230.00
240	158.40	226.00	408.00	445.00	567.75	702.00	949.00	1182.00	1543.00	1933.00	2290.00	2700.00	3176.00	3340.00	4320.00	5020.00	6060.00	7100.00	8160.00	10540.00
250	164.60	235.00	424.00	461.00	588.25	727.00	985.00	1224.00	1598.25	2003.00	2370.00	2790.00	3280.00	3430.00	4460.00	5190.00	6250.00	7320.00	8410.00	10850.00
260	170.80	244.00	440.00	477.00	608.75	752.00	1021.00	1266.00	1653.50	2073.00	2450.00	2880.00	3384.00	3520.00	4600.00	5360.00	6440.00	7540.00	8660.00	11160.00
270	177.00	253.00	456.00	493.00	629.25	777.00	1057.00	1308.00	1708.75	2143.00	2530.00	2970.00	3488.00	3610.00	4740.00	5530.00	6630.00	7760.00	8910.00	11470.00
280	183.20	262.00	472.00	509.00	649.75	802.00	1093.00	1350.00	1764.00	2213.00	2610.00	3060.00	3592.00	3700.00	4880.00	5700.00	6820.00	7980.00	9160.00	11780.00
290	189.40	271.00	488.00	525.00	670.25	827.00	1129.00	1392.00	1819.25	2283.00	2690.00	3150.00	3696.00	3790.00	5020.00	5870.00	7010.00	8200.00	9410.00	12090.00
300	195.60	280.00	504.00	541.00	690.75	852.00	1165.00	1434.00	1874.50	2353.00	2770.00	3240.00	3800.00	3880.00	5160.00	6040.00	7200.00	8420.00	9660.00	12400.00
310	201.80	289.00	520.00	557.00	711.25	877.00	1201.00	1476.00	1929.75	2423.00	2850.00	3330.00	3904.00	3970.00	5300.00	6210.00	7390.00	8640.00	9910.00	12710.00
320	208.00	298.00	536.00	573.00	731.75	902.00	1237.00	1518.00	1985.00	2493.00	2930.00	3420.00	4008.00	4060.00	5440.00	6380.00	7580.00	8860.00	10160.00	13020.00
330	214.20	307.00	552.00	589.00	752.25	927.00	1273.00	1560.00	2040.25	2563.00	3010.00	3510.00	4112.00	4150.00	5580.00	6550.00	7770.00	9080.00	10410.00	13330.00
340	220.40	316.00	568.00	605.00	772.75	952.00	1309.00	1602.00	2095.50	2633.00	3090.00	3600.00	4216.00	4240.00	5720.00	6720.00	7960.00	9300.00	10660.00	13640.00
350	226.60	325.00	584.00	621.00	793.25	977.00	1345.00	1644.00	2150.75	2703.00	3170.00	3690.00	4320.00	4330.00	5860.00	6890.00	8150.00	9520.00	10910.00	13950.00
360	232.80	334.00	600.00	637.00	813.75	1002.00	1381.00	1686.00	2206.00	2773.00	3250.00	3780.00	4424.00	4420.00	6000.00	7060.00	8340.00	9740.00	11160.00	14260.00
370	239.00	343.00	616.00	653.00	834.25	1027.00	1417.00	1728.00	2261.25	2843.00	3330.00	3870.00	4528.00	4510.00	6140.00	7230.00	8530.00	9960.00	11410.00	14570.00
380	245.20	352.00	632.00	669.00	854.75	1052.00	1453.00	1770.00	2316.50	2913.00	3410.00	3960.00	4632.00	4600.00	6280.00	7400.00	8720.00	10180.00	11660.00	14880.00
390	251.40	361.00	648.00	685.00	875.25	1077.00	1489.00	1812.00	2371.75	2983.00	3490.00	4050.00	4736.00	4690.00	6420.00	7570.00	8910.00	10400.00	11910.00	15190.00
400	257.60	370.00	664.00	701.00	895.75	1102.00	1525.00	1854.00	2427.00	3053.00	3570.00	4140.00	4840.00	4780.00	6560.00	7740.00	9100.00	10620.00	12160.00	15500.00

Manufacturing Process of Hastelloy C2000 Fasteners

Hastelloy C2000 Fasteners Application

Exporter, Manufacturer & Supplier of Hastelloy C2000 Fasteners in various material and sizes.
