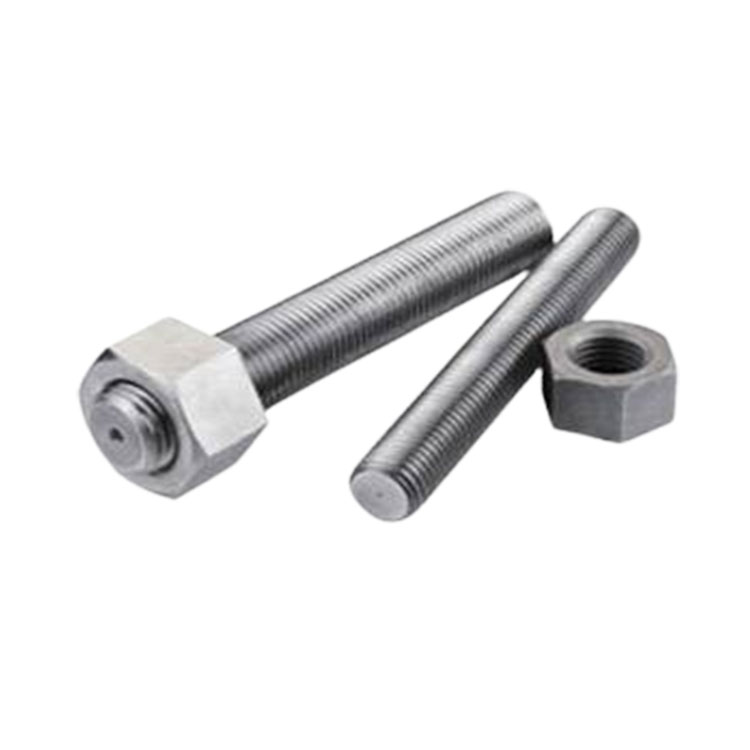

Monel Fasteners
Monel Fasteners are high-performance fastening solutions made from a nickel-copper alloy that provide strength, toughness, and corrosion resistance. The alloy contains a minimum of 63% nickel (plus cobalt), 28–34% copper, with controlled amounts of carbon, manganese, iron, sulfur, and silicon which make it ideal for demanding environments. Metracore Alloys is a leading monel fasteners manufacturer in India, providing fasteners in Monel 400 and Monel K500 grades that perform well in harsh conditions. These fasteners are utilized in chemical and petrochemical industries, oil and gas operations, marine applications, aerospace, construction, and even the automobile sector, where durability and resistance to seawater and acids are critical.
Monel Fasteners, Monel Fasteners Manufacturer in India, Monel Fasteners Manufacturer, Monel Fasteners Suppliers, Monel Bolts, Monel Bolts Suppliers, Monel Nuts, Monel Washers, Monel Screws, Monel Socket Head Cap Screws, Monel Wood Screws
Monel Fasteners resist seawater, acidic solutions, alkalis, and high-temperature conditions while maintaining excellent mechanical strength. The range includes monel bolts, monel nuts, monel washers, monel screws, monel socket head cap screws, monel wood screws, and other types like hex bolts, stud bolts, eye bolts, threaded bolts, and U bolts. Monel 400 fasteners deliver excellent corrosion resistance in marine and chemical environments. Monel K500 fasteners add higher tensile strength and hardness due to their age-hardened properties, making them suitable for more demanding industrial uses.
The specifications of Monel Fasteners meet diverse project requirements. Sizes vary from M2 to M160, with lengths ranging from 3 mm to 200 mm. Threads are supplied in BSW, Metric, UNF, UNC, and BSF sizes, or as needed to ensure compliance with global standards. Common sizes available include M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, and M36. These fasteners are manufactured using precision techniques that ensure dimensional accuracy, strength, and consistent quality, meeting the needs of industries that rely on reliable fastening solutions.
ASTM F467 Monel Fasteners Stockist and Distributor
To ensure reliability, Monel Alloy Fasteners go through quality checks, including mechanical tests, hardness tests, and non-destructive evaluations. They are supplied with certificates confirming compliance with standards like ASME SF467 and ASTM F467. Secure packaging protect fasteners during transit, keeping them free from damage and ready for immediate use. As a monel fasteners suppliers, we deliver products that meet global expectations to ensure industries receive long-lasting solutions that perform under the toughest conditions. Contact us for high-quality fasteners needs that meet application needs.
Monel Fasteners Specification
Standard
ASTM F467 / ASME SF467
Dimensions
DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3
Sizes in Stock
M3 - M100 | 3/6″ - 4″
Standard
DIN, ISO ,JIS ,GB, IS, BS, ASTM and all International Standards
Threads available
UNF, BSW, BSF, METRIC, UNC, or as required
Threads Configuration
ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
Forms
Hex, Threading, Square, Round as per Gauge Etc.
Head
Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc.
Types of Monel Fasteners
Monel Bolt
Monel Nuts
Monel Screws
Monel Washers
Monel Stud Bolt
Monel Threaded Rod
Monel Anchor Bolt
Monel Hex Bolt
Monel Hex Nut
Reach out to Metracore Alloys for reliable Monel Fasteners solutions
Technical Details of Monel Fasteners
Dimensions of Monel Fasteners
|
Table B4 HEX CAP SCREW DIMENSIONS |
|||||||
|---|---|---|---|---|---|---|---|
| Bolt Size | A | B | C (min) | D | F Thread Length for Screw Lengths |
||
| max | min | 6″ and shorter |
over 6″ | ||||
| 1/4″ | 0.2500 | 0.2450 | 7/16 | 0.488 | 5/32 | 0.750 | 1.000 |
| 5/16″ | 0.3125 | 0.3065 | 1/2 | 0.557 | 13/64 | 0.875 | 1.125 |
| 3/8″ | 0.3750 | 0.3690 | 9/16 | 0.628 | 15/64 | 1.000 | 1.250 |
| 7/16″ | 0.4375 | 0.4305 | 5/8 | 0.698 | 9/32 | 1.125 | 1.375 |
| 1/2″ | 0.5000 | 0.4930 | 3/4 | 0.840 | 5/16 | 1.250 | 1.500 |
| 9/16″ | 0.5625 | 0.5545 | 13/16 | 0.910 | 23/64 | 1.375 | 1.625 |
| 5/8″ | 0.6250 | 0.6170 | 15/16 | 1.051 | 25/64 | 1.500 | 1.750 |
| 3/4″ | 0.7500 | 0.7410 | 1-1/8 | 1.254 | 15/32 | 1.750 | 2.000 |
| 7/8″ | 0.8750 | 0.8660 | 1-5/16 | 1.465 | 35/64 | 2.000 | 2.250 |
| 1″ | 1.0000 | 0.9900 | 1-1/2 | 1.675 | 39/64 | 2.250 | 2.500 |
| 1-1/8″ | 1.1250 | 1.1140 | 1-11/16 | 1.859 | 11/16 | 2.500 | 2.750 |
| 1-1/4″ | 1.2500 | 1.2390 | 1-7/8 | 2.066 | 25/32 | 2.750 | 3.000 |
| 1-3/8″ | 1.3750 | 1.3630 | 2-1/16 | 2.273 | 27/32 | 3.000 | 3.250 |
| 1-1/2″ | 1.5000 | 1.4880 | 2-1/4 | 2.480 | 1-5/16 | 3.250 | 3.500 |
| 1-3/4″ | 1.7500 | 1.7380 | 2-5/8 | 2.893 | 1-3/32 | 3.750 | 4.000 |
| 2″ | 2.0000 | 1.9880 | 3 | 3.306 | 1-7/32 | 4.250 | 4.500 |
| 2-1/4″ | 2.2500 | 2.2380 | 3-3/8 | 3.719 | 1-3/8 | 4.750 | 5.000 |
| 2-1/2″ | 2.5000 | 2.4880 | 3-3/4 | 4.133 | 1-17/32 | 5.250 | 5.500 |
| 2-3/4″ | 2.7500 | 2.7380 | 4-1/8 | 4.546 | 1-11/16 | 5.750 | 6.000 |
| 3″ | 3.0000 | 2.9880 | 4-1/2 | 4.959 | 1-7/8 | 6.250 | 6.500 |
Weight Chart Of Monel Fasteners
| MM THREADS AS PER IS 1363/67 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| APPROXIMATE WEIGHT IN KGS FOR 100 NOS | ||||||||||
| LENGTH in milimeter | DIAMETER | |||||||||
| M 5 | M 6 | M 8 | M 10 | M 12 | M 14 | M 16 | M 18 | M 20 | M 22 | |
| 16 | 0.448 | 0.743 | 1.590 | 3.211 | ||||||
| 20 | 0.598 | 0.812 | 1.711 | 3.411 | 4.892 | |||||
| 25 | 0.660 | 0.897 | 1.871 | 3.660 | 5.252 | 8.170 | ||||
| 30 | 0.737 | 1.010 | 2.070 | 3.912 | 5.574 | 9.690 | 10.707 | 18.657 | ||
| 35 | 0.804 | 1.120 | 2.271 | 4.223 | 5.974 | 10.000 | 11.416 | 16.026 | 19.608 | |
| 40 | 0.881 | 1.230 | 2.470 | 4.533 | 6.410 | 10.288 | 12.107 | 16.667 | 20.747 | |
| 45 | 0.958 | 1.340 | 2.671 | 4.840 | 6.859 | 10.504 | 12.821 | 17.241 | 21.739 | |
| 50 | 1.030 | 1.450 | 2.870 | 5.155 | 7.299 | 11.261 | 13.624 | 17.857 | 22.727 | 28.409 |
| 55 | 1.560 | 3.071 | 5.464 | 7.740 | 11.628 | 14.409 | 18.868 | 23.810 | 30.120 | |
| 60 | 1.670 | 3.270 | 5.774 | 8.183 | 12.255 | 15.244 | 20.000 | 25.126 | 32.051 | |
| 65 | 1.781 | 3.472 | 6.083 | 8.621 | 12.626 | 16.026 | 21.008 | 26.455 | 34.014 | |
| 70 | 1.890 | 3.671 | 6.394 | 9.058 | 12.987 | 16.835 | 22.124 | 27.778 | 35.461 | |
| 75 | 2.000 | 3.873 | 6.702 | 9.506 | 13.228 | 17.606 | 23.256 | 29.070 | 39.063 | |
| 80 | 2.111 | 4.072 | 7.013 | 10.000 | 13.889 | 18.248 | 24.510 | 30.303 | 40.000 | |
| 90 | 4.472 | 7.634 | 10.917 | 14.925 | 19.841 | 26.042 | 33.113 | 41.667 | ||
| 100 | 4.873 | 8.251 | 11.820 | 16.340 | 21.459 | 27.778 | 35.714 | 46.296 | ||
| 110 | 8.881 | 12.723 | 17.730 | 23.041 | 31.250 | 38.168 | 47.170 | |||
| 120 | 9.506 | 13.624 | 18.797 | 24.631 | 32.895 | 40.984 | 50.000 | |||
| 130 | 10.101 | 14.535 | 20.000 | 26.316 | 34.722 | 43.478 | 52.632 | |||
| 140 | 10.707 | 15.432 | 20.833 | 27.933 | 35.461 | 46.296 | 55.556 | |||
| 150 | 11.312 | 16.340 | 22.222 | 29.412 | 37.594 | 48.544 | 58.824 | |||
| 160 | 11.905 | 17.241 | 24.272 | 31.056 | 40.984 | 50.505 | 61.728 | |||
| 170 | 12.500 | 18.116 | 32.680 | 53.191 | 64.935 | |||||
| 180 | 13.123 | 19.011 | 26.882 | 34.247 | 55.556 | 67.568 | ||||
| 190 | 13.736 | 19.920 | 35.971 | 58.140 | 70.423 | |||||
| 200 | 14.327 | 20.833 | 29.586 | 37.594 | 49.020 | 60.976 | 73.529 | |||
| 220 | 15.528 | 22.624 | 40.650 | 65.789 | 79.365 | |||||
| 240 | 16.722 | 24.510 | 43.860 | 71.429 | 84.746 | |||||
| 250 | 17.301 | 25.381 | 45.455 | 74.627 | 87.719 | |||||
| 260 | 17.921 | 26.316 | 47.170 | 76.923 | 90.909 | |||||
| 280 | 19.157 | 28.090 | 50.505 | 81.967 | 98.039 | |||||
| 300 | 20.325 | 29.940 | 53.763 | 87.719 | 104.167 | |||||
| 320 | 31.646 | 56.818 | 92.593 | |||||||
| 340 | 33.557 | 60.241 | 98.039 | |||||||
| 360 | 35.211 | 63.291 | 104.167 | |||||||
| 380 | 37.037 | 66.667 | 108.696 | |||||||
| 400 | 39.063 | 69.444 | 113.636 | |||||||
