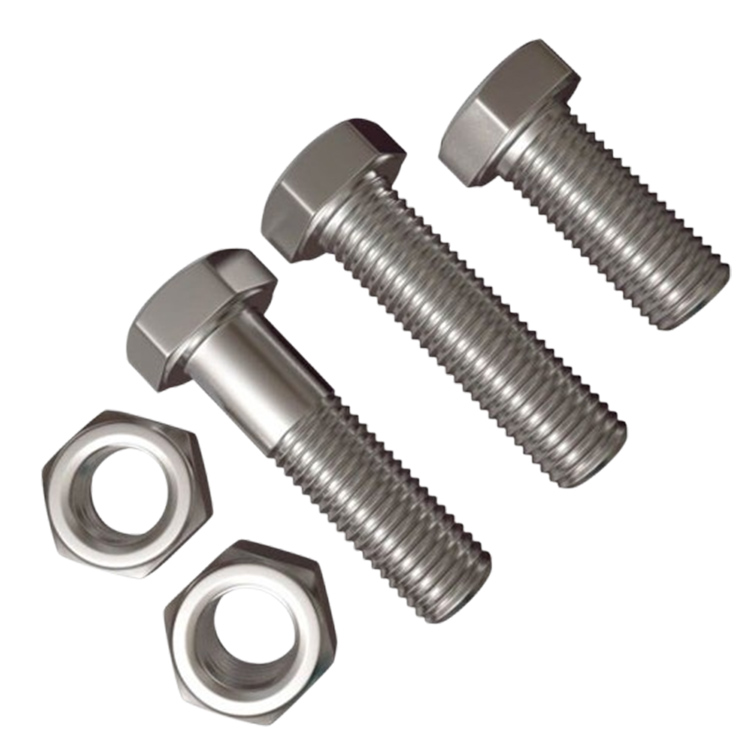

Hastelloy C22 Fasteners

Hastelloy C22 Fasteners are high-performance components made from a nickel-based alloy which includes chromium, molybdenum, tungsten, iron, cobalt, carbon, silicon, manganese, and vanadium. This unique mix provide superior resistance against crevice corrosion, pitting, and stress corrosion cracking, even in aggressive oxidizing or reducing conditions. These fasteners perform well in both acidic and high-temperature environments due to its strength, durability, and toughness. With a tensile strength above 690 MPa and excellent ductility, these fasteners offer both reliability and long service life. Metracore Alloys is a leading hastelloy c22 fasteners manufacturers, providing precision-engineered fasteners that meet international quality standards.

Hastelloy C22 Fasteners, Hastelloy C22 Bolts, Hastelloy C22 Nuts, Hastelloy C22 Screws

Our Alloy C22 Fasteners are available in various sizes and dimensions to meet different project needs. The standard length range for hastelloy c22 bolts is 3 mm to 200 mm, while hastelloy c22 nuts and hastelloy c22 screws are available from M3 to M56 or custom-made as per project drawings. Machine screws range from M1.6 to M12, and hastelloy c22 washers are produced from M3 to M56 or as required by the client. All fasteners adhere to ASTM and DIN standards, making them dependable for sectors such as chemical processing, petrochemicals, pharmaceuticals, marine, pollution control, and power generation. Their versatility makes them suitable for applications where strength and resistance to corrosive elements are critical.

We provide various types, each serving a specific function. Hex Bolts provide secure and strong fastening for heavy machinery, while Hex Nuts ensure stability in joint assemblies. Screws are designed for easy installation and a secure grip in structural connections. Studs and threaded rods are excellent for long-term clamping in pressure vessels and heat exchangers. Washers help to evenly distribute loads which reduce surface wear. All of these UNS N06022 Fasteners fulfil ASTM B574 requirements. ASTM B574 UNS N06022 Fasteners are valued for their consistency in both strength and corrosion resistance. As a reliable hastelloy c22 fasteners suppliers, we ensure that every product deliver dependable performance in even the harsh operating environments.

Hastelloy C22 Washers, Hastelloy C22 Fasteners Suppliers, Hastelloy C22 Fasteners Manufacturers, Hastelloy C22 Fasteners Manufacturers In India

Quality is ensured at every stage of manufacturing. Nickel Alloy C22 Fasteners are tested for tensile strength, hardness, chemical balance, and dimensional accuracy before dispatch. Each shipment includes certificates of compliance and test reports. Our fasteners are packaged in solid hardwood cases or cartons with suitable labelling to ensure safe handling and global delivery. Advanced manufacturing techniques guarantee precision, while quick dispatch ensure timely project completion. Choose our high-quality c22 fasteners built to perform and last.

Get the Latest Price

Table of Content

Hastelloy C22 Fasteners Specification

Types of Hastelloy C22 Fasteners

Reach out to Metracore Alloys for reliable Hastelloy C22 Fasteners solutions

Technical Details of Hastelloy C22 Fasteners

Equivalent Grades of Hastelloy C22 Fasteners

STANDARD	WERKSTOFF NR.	UNS	JIS	GOST	EN	OR
Hastelloy C22	2.4602	N06022	NW 6022	–	NiCr21Mo14W	–

Chemical Composition of Hastelloy C22 Fasteners

Grade	C	Mn	Si	S	Co	Ni	Cr	Fe	Mo	P
Hastelloy C22	0.010 max	0.50 max	0.08 max	0.02 max	2.50 max	50.015 min*	20.00 – 22.50	2.00 – 6.00	12.50 – 14.50	0.02 max

Mechanical Properties of Hastelloy C22 Fasteners

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Hastelloy C22	8.69 g/cm3	1399 °C (2550 °F)	Psi – 1,00,000 , MPa – 690	Psi – 45000 , MPa – 310	45 %

Dimensions of Hastelloy C22 Bolts Fasteners

Nominal Size Of D	Diameter Of Body		ASTM A193 Head Thickness		ASTM A193 Flats Acro		ASTM A193 Corners Acro
	D (MAXIMUM)	D (MINIMUM)	H (MAXIMUM)	H (MINIMUM)	F (MAXIMUM)	F (MINIMUM)	C (MAXIMUM)	C (MINIMUM)
m10	10.00	9.78	6.63	6.17	17.00	15.73	18.48	17.77
m12	12.00	11.73	7.76	4.24	19.00	17.73	20.78	20.03
m14	14.00	13.73	9.09	8.51	22.00	20.67	24.25	23.35
m16	16.00	15.73	10.32	9.68	24.00	23.67	27.71	26.75
m20	20.00	19.67	12.88	12.12	30.00	29.16	34.64	32.95
m24	24.00	23.67	15.44	14.56	36.00	35.00	41.57	39.55
m30	30.00	29.67	19.48	17.92	46.00	45.00	53.12	50.85
m36	36.00	35.61	23.38	21.63	55.00	53.80	63.51	60.79
m42	42.00	41.38	26.97	25.03	65.00	62.90	75.06	71.71
m48	48.00	47.38	31.07	28.93	75.00	72.60	86.60	82.76
m56	56.00	55.26	36.2	33.80	85.00	82.20	98.15	93.71
m64	64.00	63.26	41.32	38.68	95.00	91.80	109.70	104.65
m72	72.00	71.26	46.45	43.55	105.00	101.40	121.24	115.60
m80	80.00	79.26	51.58	48.42	115.00	111.00	132.72	126.54
m90	90.00	89.13	57.74	54.26	130.00	125.50	150.11	143.07
m100	90.00	99.13	63.9	60.10	145.00	140.00	167.43	159.60

Hastelloy C22 Nuts Fasteners Dimensions

Nominal Size Of Thread Diameter		F			G		H
		Across Flats Width			Across Corners Width		Thickness Row
		Basic	Maximum	Minimum	Maximum	Minimum	Basic	Maximum	Minimum
1/4	.2500	7/16	.438	.428	.505	.488	7/32	.226	.212
5/16	.3125	1/2	.500	.489	.577	.557	17/64	.273	.258
3/8	.3750	9/16	.562	.551	.650	.628	21/64	.337	.479
7/16	.4375	11/16	.688	.675	.794	.768	3/8	.385	.365
1/2	.5000	3/4	.750	.736	.866	.840	7/16	.448	.427
9/16	.5625	7/8	.875	.861	1.010	.982	31/64	.496	.473
5/8	.6250	15/16	.938	.922	1.083	1.051	35/64	.559	.535
3/4	.7500	1-1/8	1.125	1.088	1.299	1.240	41/64	.665	.617
7/8	.8750	1-5/16	1.312	1.269	1.516	1.447	3/4	.776	.724
1	1.0000	1-1/2	1.500	1.450	1.732	1.653	55/64	.887	.831
1-1/8	1.1250	1-11/16	1.688	1.631	1.949	1.859	31/32	.999	.939
1-3/8	1.3750	2-1/16	2.062	1.994	2.382	2.273	1-11/64	1.206	1.138
1-1/2	1.500	2-1/4	2.250	2.175	2.598	2.480	1-9/32	1.ASTM A194 GR. 8	1.245
1-5/8	1.6250	2-7/16	2.438	2.356	2.815	2.686	1-25/64	1.429	1.353
1-3/4	1.7500	2-5/8	2.625	2.538	3.031	2.893	1-1/2	1.540	1.460
2	2.0000	3	3.000	2.900	3.464	3.306	1-23/32	1.763	1.675
2-1/4	2.2500	3-3/8	3.375	3.263	3.897	3.719	1-15/16	1.986	1.890
2-1/2	2.5000	3-3/4	3.750	3.625	4.330	4.133	2-5/32	2.209	2.105
2-3/4	2.7500	4-1/8	4.125	3.988	4.763	4.546	2-3/8	2.431	2.319

Hastelloy C22 Flat Washers Fasteners Dimensions

Bolt Size	USS			SAE
Bolt Size	ID (in.)	OD (in.)	Thickness	ID (in.)	OD (in.)	Thickness
5/32 (#8)	–	–	–	0.188	0.438	.036/.065
1/8 (#6)	–	–	–	0.156	0.375	.036/.065
7/32 (#12)	–	–	–	0.250	0.562	.051/.080
3/16 (#10)	0.250	0.560	.036/.065	0.220	0.500	.036/.065
1/4 (#14)	0.312	0.734	.051/.080	0.281	0.625	.051/.080
3/8	0.438	1.000	.064/.104	0.406	0.812	.051/.080
5/16	0.375	0.875	.064/.104	0.344	0.688	.051/.080
7/16	0.500	1.250	.064/.104	0.469	0.922	.051/.080
9/16	0.625	1.469	.086/.132	0.594	1.156	.074/.121
1/2	0.562	1.375	.086/.132	0.531	1.062	.074/.121
5/8	0.688	1.750	.108/.160	0.656	1.312	.074/.121
7/8	0.938	2.250	.136/.192	0.938	1.750	.108/.160
3/4	0.812	2.000	.122/.177	0.812	1.469	.108/.160
1	1.062	2.500	.136/.192	1.062	2.000	.108/.160
1 1/4	1.375	3.000	.136/.192	1.375	2.500	.136/.192
1 1/8	1.250	2.750	.136/.192	1.250	2.250	.108/.160
1 3/8	1.500	3.250	.153/.213	1.500	2.750	.136/.213
3	3.125	5.500	.249/.327	–	–	–
1 5/8	1.750	3.750	.153/.213	–	–	–
1 1/2	1.625	3.500	.153/.213	1.625	3.000	.153/.213
1 3/4	1.875	4.000	.153/.213	–	–	–
2	2.125	4.500	.153/.213	–	–	–
1 7/8	2.000	4.250	.153/.213	–	–	–
2 1/2	2.625	5.000	.210/.280	–	–	–
2 1/4	2.375	4.750	.320/.248	–	–	–
2 3/4	2.875	5.250	.228/.410S	–	–	–

Weight Chart Of Hastelloy C22 Fasteners

APPROX WEIGHT IN K.G. PER 1000 PIECE
Size	M10	M12	M16	M18	M20	M22	M24	M27	M30	M33	M36	M39	M42	M45	M48	M52	M56	M60	M64	M72
50	40.60	57.02	107.00	139.00	178.25	222.00	265.00	390.00	513.25	648.00	795.00	–	–	–	–	–	–	–	–	–
55	43.70	61.42	114.00	147.00	188.50	235.00	283.00	410.00	538.50	676.00	835.00	–	–	–	–	–	–	–	–	–
60	46.80	65.82	121.00	155.00	198.75	248.00	301.00	430.00	563.75	704.00	875.00	1087.00	–	–	–	–	–	–	–	–
65	49.90	70.22	128.00	163.00	209.00	261.00	319.00	450.00	589.00	732.00	915.00	1134.00	–	–	–	–	–	–	–	–
70	53.00	74.62	136.00	171.00	219.25	274.00	337.00	470.00	614.25	760.00	955.00	1181.00	1390.00	–	–	–	–	–	–	–
75	56.10	79.02	144.00	179.00	229.50	287.00	355.00	490.00	639.50	788.00	995.00	1228.00	1445.00	–	–	–	–	–	–	–
80	59.20	83.42	152.00	187.00	239.75	300.00	373.00	510.00	664.75	821.00	1035.00	1275.00	1500.00	1900.00	–	–	–	–	–	–
85	62.30	87.82	160.00	195.00	250.00	313.00	391.00	531.00	690.00	854.00	1075.00	1322.00	1555.00	1945.00	–	–	–	–	–	–
90	65.40	92.22	168.00	203.00	260.25	326.00	409.00	552.00	716.50	887.00	1115.00	1369.00	1610.00	1990.00	2220.00	–	–	–	–	–
95	68.50	96.62	176.00	211.00	270.50	339.00	427.00	573.00	743.00	920.00	1155.00	1416.00	1665.00	2035.00	2290.00	–	–	–	–	–
100	71.60	101.02	184.00	219.00	280.75	352.00	445.00	594.00	769.50	953.00	1195.00	1463.00	1720.00	2080.00	2360.00	2640.00	3400.00	–	–	–
110	77.80	110.00	200.00	237.00	301.25	377.00	481.00	636.00	824.75	1023.00	1250.00	1530.00	1824.00	2170.00	2500.00	2810.00	3590.00	4240.00	4910.00	–
120	84.00	119.00	216.00	253.00	321.75	402.00	517.00	678.00	880.00	1093.00	1330.00	1620.00	1928.00	2260.00	2640.00	2980.00	3780.00	4460.00	5160.00	6820.00
130	90.20	127.80	232.00	269.00	342.25	427.00	553.00	720.00	935.25	1163.00	1410.00	1710.00	2032.00	2350.00	2780.00	3150.00	3970.00	4680.00	5410.00	7130.00
140	96.40	136.60	248.00	285.00	362.75	452.00	589.00	762.00	990.25	1233.00	1490.00	1800.00	2136.00	2440.00	2920.00	3320.00	4160.00	4900.00	5660.00	7440.00
150	102.60	145.40	264.00	301.00	383.25	477.00	625.00	804.00	1045.75	1303.00	1570.00	1890.00	2240.00	2530.00	3060.00	3490.00	4350.00	5120.00	5910.00	7750.00
160	108.80	154.20	280.00	317.00	403.75	502.00	661.00	846.00	1101.00	1373.00	1650.00	1980.00	2344.00	2620.00	3200.00	3660.00	4540.00	5340.00	6160.00	8060.00
170	115.00	163.00	296.00	333.00	424.25	527.00	697.00	888.00	1156.25	1443.00	1730.00	2070.00	2448.00	2710.00	3340.00	3830.00	4730.00	5560.00	6410.00	8370.00
180	121.20	172.00	312.00	349.00	444.75	552.00	733.00	930.00	1211.50	1513.00	1810.00	2160.00	2552.00	2800.00	3480.00	4000.00	4920.00	5780.00	6660.00	8680.00
190	127.40	181.00	328.00	365.00	465.25	577.00	769.00	972.00	1266.75	1583.00	1890.00	2250.00	2656.00	2890.00	3620.00	4170.00	5110.00	6000.00	6910.00	8990.00
200	133.60	190.00	344.00	381.00	485.75	602.00	805.00	1014.00	1322.00	1653.00	1970.00	2340.00	2760.00	2980.00	3760.00	4340.00	5300.00	6220.00	7160.00	9300.00
210	139.80	199.00	360.00	397.00	506.25	627.00	841.00	1056.00	1377.25	1723.00	2050.00	2430.00	2864.00	3070.00	3900.00	4510.00	5490.00	6440.00	7410.00	9610.00
220	146.00	208.00	376.00	413.00	526.75	652.00	877.00	1098.00	1432.50	1793.00	2130.00	2520.00	2968.00	3160.00	4040.00	4680.00	5680.00	6660.00	7660.00	9920.00
230	152.20	217.00	392.00	429.00	547.25	677.00	913.00	1140.00	1487.75	1863.00	2210.00	2610.00	3072.00	3250.00	4180.00	4850.00	5870.00	6880.00	7910.00	10230.00
240	158.40	226.00	408.00	445.00	567.75	702.00	949.00	1182.00	1543.00	1933.00	2290.00	2700.00	3176.00	3340.00	4320.00	5020.00	6060.00	7100.00	8160.00	10540.00
250	164.60	235.00	424.00	461.00	588.25	727.00	985.00	1224.00	1598.25	2003.00	2370.00	2790.00	3280.00	3430.00	4460.00	5190.00	6250.00	7320.00	8410.00	10850.00
260	170.80	244.00	440.00	477.00	608.75	752.00	1021.00	1266.00	1653.50	2073.00	2450.00	2880.00	3384.00	3520.00	4600.00	5360.00	6440.00	7540.00	8660.00	11160.00
270	177.00	253.00	456.00	493.00	629.25	777.00	1057.00	1308.00	1708.75	2143.00	2530.00	2970.00	3488.00	3610.00	4740.00	5530.00	6630.00	7760.00	8910.00	11470.00
280	183.20	262.00	472.00	509.00	649.75	802.00	1093.00	1350.00	1764.00	2213.00	2610.00	3060.00	3592.00	3700.00	4880.00	5700.00	6820.00	7980.00	9160.00	11780.00
290	189.40	271.00	488.00	525.00	670.25	827.00	1129.00	1392.00	1819.25	2283.00	2690.00	3150.00	3696.00	3790.00	5020.00	5870.00	7010.00	8200.00	9410.00	12090.00
300	195.60	280.00	504.00	541.00	690.75	852.00	1165.00	1434.00	1874.50	2353.00	2770.00	3240.00	3800.00	3880.00	5160.00	6040.00	7200.00	8420.00	9660.00	12400.00
310	201.80	289.00	520.00	557.00	711.25	877.00	1201.00	1476.00	1929.75	2423.00	2850.00	3330.00	3904.00	3970.00	5300.00	6210.00	7390.00	8640.00	9910.00	12710.00
320	208.00	298.00	536.00	573.00	731.75	902.00	1237.00	1518.00	1985.00	2493.00	2930.00	3420.00	4008.00	4060.00	5440.00	6380.00	7580.00	8860.00	10160.00	13020.00
330	214.20	307.00	552.00	589.00	752.25	927.00	1273.00	1560.00	2040.25	2563.00	3010.00	3510.00	4112.00	4150.00	5580.00	6550.00	7770.00	9080.00	10410.00	13330.00
340	220.40	316.00	568.00	605.00	772.75	952.00	1309.00	1602.00	2095.50	2633.00	3090.00	3600.00	4216.00	4240.00	5720.00	6720.00	7960.00	9300.00	10660.00	13640.00
350	226.60	325.00	584.00	621.00	793.25	977.00	1345.00	1644.00	2150.75	2703.00	3170.00	3690.00	4320.00	4330.00	5860.00	6890.00	8150.00	9520.00	10910.00	13950.00
360	232.80	334.00	600.00	637.00	813.75	1002.00	1381.00	1686.00	2206.00	2773.00	3250.00	3780.00	4424.00	4420.00	6000.00	7060.00	8340.00	9740.00	11160.00	14260.00
370	239.00	343.00	616.00	653.00	834.25	1027.00	1417.00	1728.00	2261.25	2843.00	3330.00	3870.00	4528.00	4510.00	6140.00	7230.00	8530.00	9960.00	11410.00	14570.00
380	245.20	352.00	632.00	669.00	854.75	1052.00	1453.00	1770.00	2316.50	2913.00	3410.00	3960.00	4632.00	4600.00	6280.00	7400.00	8720.00	10180.00	11660.00	14880.00
390	251.40	361.00	648.00	685.00	875.25	1077.00	1489.00	1812.00	2371.75	2983.00	3490.00	4050.00	4736.00	4690.00	6420.00	7570.00	8910.00	10400.00	11910.00	15190.00
400	257.60	370.00	664.00	701.00	895.75	1102.00	1525.00	1854.00	2427.00	3053.00	3570.00	4140.00	4840.00	4780.00	6560.00	7740.00	9100.00	10620.00	12160.00	15500.00

Manufacturing Process of Hastelloy C22 Fasteners

Hastelloy C22 Fasteners Application

Exporter, Manufacturer & Supplier of Hastelloy C22 Fasteners in various material and sizes.
