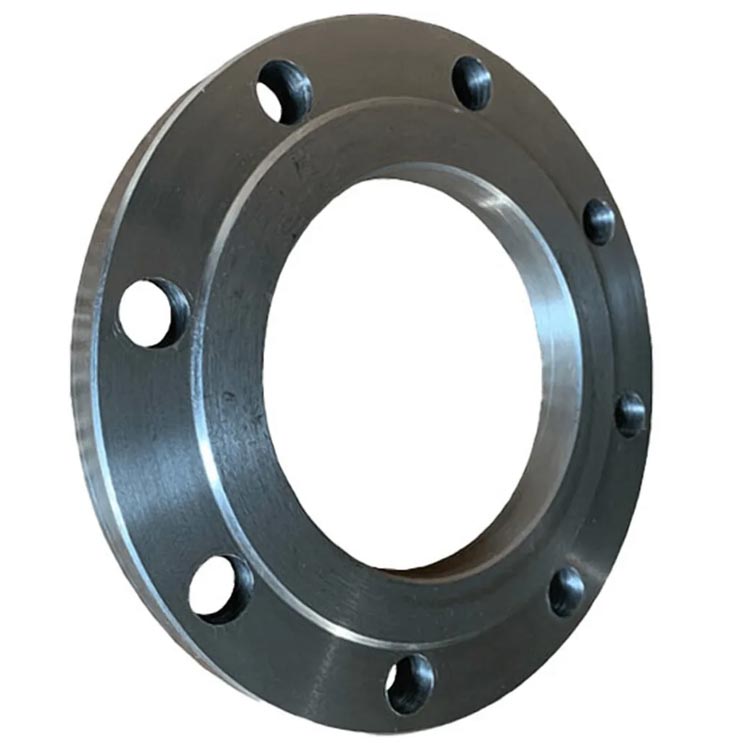

Inconel 718 Flanges

Inconel 718 Flanges are strong and reliable pipe fittings made from a nickel-chromium superalloy. This alloy is well known for its ability to handle extreme heat, corrosion and fatigue. With a density of 8.1 g/cm³ and a melting point of 1350 °C, it delivers outstanding mechanical strength. The material has an elongation of 45%, a yield strength of 70,000 psi and a tensile strength of up to 135,000 psi. Metracore Alloys is a reputable manufacturer and supplier of Inconel 718 flanges offering strong goods that are made following international standards.

Inconel 718 Flanges Manufacturers, Inconel 718 Flanges Suppliers, Inconel 718 Flanges Price

These flanges satisfy ANSI, DIN, JIS, BS and other international dimensions in accordance with ASTM B564 / ASME SB564. The sizes that are available are ½” NB to 12″ NB, and the pressure ratings range from 150 LBS to 2500 LBS. Face types include Ring Type Joint (RTJ), Raised Face (RF) and Flat Face (FF). High strength, extended service life, resistance to corrosion and age hardening capacity are important characteristics. They are appropriate for demanding applications because they function well at temperatures as high as 1300°F (704°C). Benefits include cost effectiveness, ease of installation, low maintenance and dependability in challenging circumstances.

Inconel 718 Flanges are used in many industries. They are important for space components, rocket motors and turbines in aerospace. They can tolerate high pressure and corrosive fluids in wellheads and pipelines for gas and oil. For safe, effective operation, power plants use them in turbines and boilers. Because of their resistance to harsh chemicals they are also frequently used in heat exchangers, reactors and chemical processing. They are also essential to the marine and nuclear industries due to their strength, durability, and weldability. Careful raw material selection, melting, forging, machining, heat treatment and aging procedures to increase strength are all part of the manufacturing process.

Inconel 718 Pipe Flanges, ASTM B564 Inconel 718 Flanges, Alloy 718 Flanges

Every flange undergoes strict quality checks, including PMI, ultrasonic, radiographic, and mechanical testing. ASTM/ASME B564 and UNS N07718 standards are met by the products. Reliability is guaranteed by certifications like MTC, raw material reports, radiography test reports and third party inspections. To avoid corrosion and damage during delivery the packaging is secure. As reputable manufacturers and suppliers of Inconel 718 flanges we offer verified, tested goods that are prepared for the most exacting international markets.

Get the Latest Price

Table of Content

Inconel 718 Flanges Specification

Types of Inconel 718 Flanges

Manufacturing Types of Inconel 718 Flanges

Inconel 718 Flanges Face Forms

Reach out to Metracore Alloys for reliable Inconel 718 Flanges solutions

Technical Details of Inconel 718 Flanges

Equivalent Grades of ASTM B564 Inconel 718 Flanges

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Inconel 718	2.4668	N07718	–	–	–	–	–

Inconel 718 Flanges Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr
Inconel 718	0.08 max	0.35 max	0.35 max	0.015 max	0.30 max	–	50.00 – 55.00	17.00 – 21.00

Inconel 718 Flanges Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Inconel 718	8.2 g/cm3	1350 °C (2460 °F)	Psi – 1,35,000 , MPa – 930	Psi – 75,000 , MPa – 482	45 %

Dimensions of Inconel 718 Flanges

Nom. Pipe Size	O	T	R	X	No./Dia. of Holes	Bolt Circle Dia.	L2	H	B2	L	B	r	L3	B3	D
1/2	3.5	0.44	1.38	1.19	4-0.62	2.38	1.88	0.84	0.62	0.62	0.88	0.12	0.62	0.9	0.38
3/4	3.88	0.5	1.69	1.5	4-0.62	2.75	2.06	1.05	0.82	0.62	1.09	0.12	0.62	1.11	0.44
1	4.25	0.56	2	1.94	4-0.62	3.12	2.19	1.32	1.05	0.69	1.36	0.12	0.69	1.38	0.5
1-1/4	4.62	0.62	2.5	2.31	4-0.62	3.5	2.25	1.66	1.38	0.81	1.7	0.19	0.81	1.72	0.56
1-1/2	5	0.68	2.88	2.56	4-0.62	3.88	2.44	1.9	1.61	0.88	1.95	0.25	0.88	1.97	0.62
2	6	0.75	3.62	3.06	4-0.75	4.75	2.5	2.38	2.07	1	2.44	0.31	1	2.46	0.69
2-1/2	7	0.88	4.12	3.56	4-0.75	5.5	2.75	2.88	2.47	1.12	2.94	0.31	1.12	2.97	0.75
3	7.5	0.94	5	4.25	4-0.75	6	2.75	3.5	3.07	1.19	3.57	0.38	1.19	3.6	0.81
3-1/2	8.5	0.94	5.5	4.81	8-0.75	7	2.81	4	3.55	1.25	4.07	0.38	1.25	4.1	0.88
4	9	0.94	6.19	5.31	8-0.75	7.5	3	4.5	4.03	1.31	4.57	0.44	1.31	4.6	0.94

Pressure Ratings of Inconel 718 ASTM B564 UNS N07718 Alloy Flanges

Nom. Pipe Size	O	T	R	X	No./Dia. of Holes	Bolt Circle Dia.	L2	H	B2	L	B	r	L3	B3	D
1/2	3.5	0.44	1.38	1.19	4-0.62	2.38	1.88	0.84	0.62	0.62	0.88	0.12	0.62	0.9	0.38
3/4	3.88	0.5	1.69	1.5	4-0.62	2.75	2.06	1.05	0.82	0.62	1.09	0.12	0.62	1.11	0.44
1	4.25	0.56	2	1.94	4-0.62	3.12	2.19	1.32	1.05	0.69	1.36	0.12	0.69	1.38	0.5
1-1/4	4.62	0.62	2.5	2.31	4-0.62	3.5	2.25	1.66	1.38	0.81	1.7	0.19	0.81	1.72	0.56
1-1/2	5	0.68	2.88	2.56	4-0.62	3.88	2.44	1.9	1.61	0.88	1.95	0.25	0.88	1.97	0.62
2	6	0.75	3.62	3.06	4-0.75	4.75	2.5	2.38	2.07	1	2.44	0.31	1	2.46	0.69
2-1/2	7	0.88	4.12	3.56	4-0.75	5.5	2.75	2.88	2.47	1.12	2.94	0.31	1.12	2.97	0.75
3	7.5	0.94	5	4.25	4-0.75	6	2.75	3.5	3.07	1.19	3.57	0.38	1.19	3.6	0.81
3-1/2	8.5	0.94	5.5	4.81	8-0.75	7	2.81	4	3.55	1.25	4.07	0.38	1.25	4.1	0.88
4	9	0.94	6.19	5.31	8-0.75	7.5	3	4.5	4.03	1.31	4.57	0.44	1.31	4.6	0.94

Size of Inconel 718 Flanges

Size in (In)	Size in (Mm)	No of Bolts	Bolt UNC Size	RF Stud Length	Stud ISO Size	Machine Flange Bolt Len
1/2	15	4	1/2	55	M14	50
3/4	20	4	1/2	65	M14	50
1	25	4	1/2	65	M14	55
1 ^1/2	40	4	1/2	70	M14	65
2	50	4	5/8	85	M16	70
3	80	4	5/8	90	M16	75
3 ^1/2	90	8	5/8	90	M16	75
6	150	8	3/4	100	M20	85
8	200	8	3/4	110	M20	90
10	250	12	7/8	115	M24	100
1 ^1/4	32	4	1/2	70	M14	55
2 ^1/2	65	4	5/8	90	M16	75
5	125	8	3/4	95	M20	85
16	400	16	1	135	M27	115
18	450	16	1 1/8	145	M30	125
20	500	20	1 1/8	160	M30	140

Manufacturing Process of Inconel 718 Flanges

Inconel 718 Flanges Application
