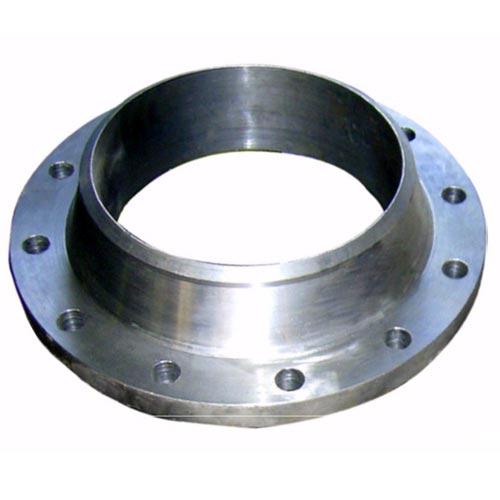

Super Duplex Steel Flanges

Home -

Super Duplex stainless steel flanges are renowned for their low thermal expansion, high thermal conductivity, and exceptional resistance to corrosion cracking and chloride stress. Grades such as ASTM A182 Duplex UNS S32750 / S32760 Flanges work well in brackish waters, saline environments, bleaching processes, and even food processing. These flanges are manufactured by Metracore Alloys under strict quality standards, ensuring their strength, longevity, and resilience to challenging operating environments.

Super Duplex Steel Flanges, Super Duplex Stainless Steel Flanges, Super Duplex Flanges

These super duplex steel flanges come with strong mechanical properties and reliable specifications. Standards include ASTM A182 / ASME SA182 with grades UNS S32750, S32760, S32950, F51, F53, and F55. Sizes range from 1/8″NB to 48″NB. They show exceptional resistance to chlorides, including stress corrosion cracking (SCC). The higher chromium, molybdenum, and nitrogen levels give a PREN above 40, making them highly resistant to pitting and crevice corrosion. They also show strong resistance to sulfuric acid. Mechanically, they offer higher yield and tensile strength than standard duplex steels while keeping good ductility and formability. They also have excellent fatigue resistance, good weldability, and can absorb high energy during operation.

Super duplex flanges are frequently used in sectors where resistance to corrosion is crucial. Due to their enhanced resistance to pitting and crevice corrosion, Duplex Steel S32205 Flanges are frequently used in chemical processing facilities, desalination plants, and seawater systems. Additionally, they are employed in the food processing, municipal waterworks, pulp and paper, oil and gas, nuclear power plants, and fossil fuel power plants. Heat exchangers, fluid piping, textile equipment, and pharmaceutical processing are some additional uses. Raw super duplex steel is forged or rolled, then machined, heated, solution-annealed and quenched to create these flanges. Each flange is tested with dimensional checks and non-destructive methods to ensure quality.

Super Duplex Steel Flanges Supplier, Super Duplex Flanges Manufacturer In India, Super Duplex Steel Flange Manufacturers

All of our super duplex stainless steel flanges are certified to ASTM, ASME, and EN standards. They comply with dimensional norms such as ASME B16.5 and EN1092. Each product is supplied with mill test certificates (MTCs) confirming chemical composition, mechanical properties, and pressure ratings. To safeguard the flanges during handling and transportation, packaging options include palletised crates, bubble wrap, seaworthy cases and wooden boxes. As a renowned super duplex flanges manufacturer in India, we ensure that each flange satisfies international performance and dependability standards.

Get the Latest Price

Table of Content

Super Duplex Steel Flanges Specification

Types of Super Duplex Steel Flanges

Super Duplex Steel Flanges Face Forms

Reach out to Metracore Alloys for reliable Super Duplex Steel Flanges solutions

Technical Details of Super Duplex Steel Flanges

Super Duplex Flange Pressure Rating

Temperature In °F	Working Pressure in Class 75 to 2500 In PSI
Temperature In °F	CL 75	CL 150	CL 300	CL 400	CL 600	CL 900	CL 1500	CL 2500
-20~100	145	290	750	1000	1500	2250	3750	6250
200	130	260	745	990	1490	2230	3720	6200
400	100	200	615	820	1230	1845	3070	5120
600	70	140	555	740	1115	1670	2785	4640
700	–	110	540	725	1085	1625	2710	4520
