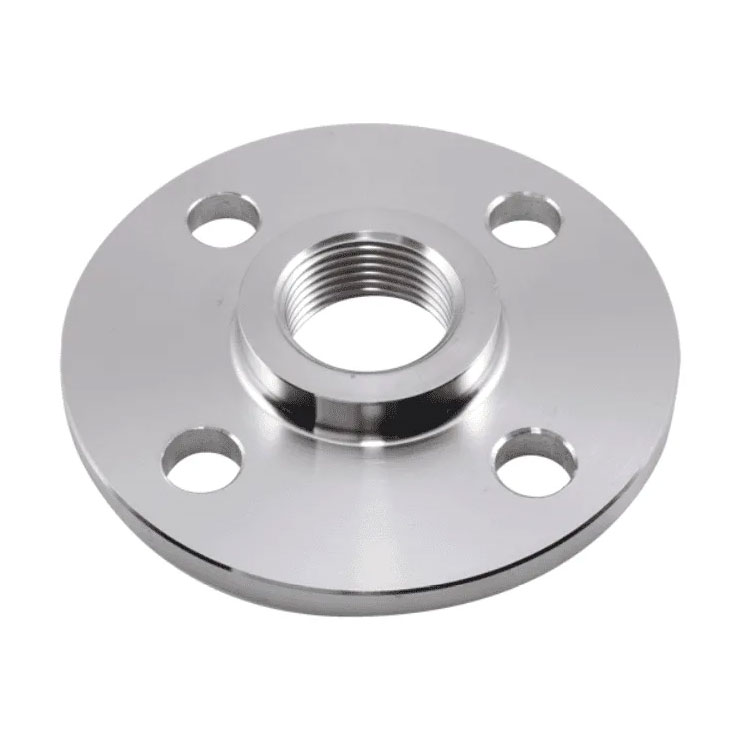

Hastelloy X Flanges
Hastelloy X flanges are high-performance chromium-nickel-iron-molybdenum alloy flanges known for their durability, strength and resistance to heat. With oxidation resistance up to 2200°F, these flanges function exceptionally well in high-temperature settings. Even at 1500°C, they remain stable and resilient as they are almost non-magnetic. They are reliable in harsh and reducing conditions due to their resistance to carburisation and chloride stress corrosion cracking. These flanges are manufactured by Metracore Alloys Private Limited using certified raw materials, ensuring adherence to global standards. The alloy is composed of balanced nickel, controlled iron, 8–10% molybdenum and 20.5–23% chromium. Exceptional performance in harsh environments is provided by mechanical properties like a density of 8.22 g/cm³, a tensile strength of 655 MPa, a yield strength of 240 MPa, and a 35% elongation.
hastelloy x flanges, hastelloy x flanges, manufacturer in india, hastelloy x flanges manufacturer, hastelloy x flanges Suppliers
These flanges meet specifications such as ASTM B564 and ASME SB564 and are available in sizes ranging from ½ inch to 48 inches in forged, threaded, screwed and plate types. Hastelloy X Flanges are easy to form and weld, offering resistance to a wide range of corrosive environments. They are highly adaptable as they combine electrical resistivity, toughness, hardness, and good thermal conductivity. Outstanding strength at high temperatures, resistance to oxidation, carburisation and nitriding and the capacity to tolerate corrosion cracking under chloride stress are some of their key characteristics. Under heat and pressure, these flanges retain their mechanical strength and their fabrication properties make it simple to weld and form them into intricate shapes. These attributes explain their widespread use in demanding industries such as aerospace, petrochemicals, industrial furnaces, and heat treatment equipment.
In industries where harsh environments are common Hastelloy X Flanges are widely used. The oil and gas industry, nuclear power plants, pulp and paper mills, chemical processing facilities and shipbuilding all use them. They are also crucial in heat exchangers, reactors and gas turbine parts because of their resistance to corrosive chemicals and high temperatures. Getting certified raw materials, heat treatment, precision forging, CNC machining for dimensional accuracy and thorough quality checks using both destructive and non-destructive testing are all part of the manufacturing process.
hastelloy x SO flanges, astm b564 hastelloy X flanges, hastelloy x blind flanges, hastelloy x flat face flange
To guarantee customer satisfaction each batch of our Hastelloy X Flanges is delivered with certifications such as EN 10204/3.1B, raw material certificates, 100% radiography test reports, and third-party inspection reports. We package with great care using wooden crates, pallets, shrink-wrapped bundles and customized options for safe worldwide delivery. Being a reputable Hastelloy X Flanges manufacturer in India, we guarantee long-lasting, well-tested, and superior products that are shipped all over the world. Our business is also known for being one of the most trustworthy Hastelloy X Flanges suppliers, catering to sectors that require flanges with high performance and durability.
- Hastelloy X Flanges Specification
- Types of Hastelloy X Flanges
- Hastelloy X Flanges Face Forms
- Technical Details of Hastelloy X Flanges
- Equivalent Grades of Hastelloy X Flanges
- Hastelloy X Flanges Chemical Composition
- Hastelloy X Flanges Mechanical Properties
- Manufacturing Process of Hastelloy X Flanges
- Hastelloy X Flanges Application
Hastelloy x Flanges Specification
Standard
ASTM B564 / ASME SB564
Dimensions
ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Sizes in Stock
1/2″NB TO 60″NB
Flanges Process
Forging, Rolling, Casting
Types of Flanges
Threaded / Screwed / Forged / Plate
Class / Pressure
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type
Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Flange Thread
FNPT, NPT, BSPT, MNPT, BSPP
Types of hastelloy X Flanges
Hastelloy X Slip On Flanges
Hastelloy X Socket Weld Flanges
Hastelloy X Blind Flanges
Hastelloy X Weld Neck Flanges
Hastelloy X Threaded / Screwed Flanges
Hastelloy X Lap Joint Flanges
Hastelloy X Long Weld Neck Flanges
Hastelloy X Spectacle Blind Flanges
Hastelloy X Reducing Flanges
Hastelloy X Flanges Face Forms
Raised Face (RF)
Ring Type Joint (RTJ)
Flat Face (FF)
Lap-Joint Face (LJF)
Reach out to Metracore Alloys Private Limited for reliable Hastelloy X Flanges solutions
Technical Details of Hastelloy X Flanges
Hastelloy X Flanges Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS |
| Hastelloy X | 2.4665 | N06002 |
Chemical Composition of Hastelloy X Flanges
| Grade | C | Mn | Si | C0 | S | Fe | Ni | Cr | Mo | P |
| Hastelloy X | 0.05 – 0.15 | 1.00 max | 1.00 max | 0.50 – 2.50 | 0.03 max | 17.00 – 20.00 | Balance | 20.50 – 23.00 | 8.00 – 10.00 | 0.04 max |
Mechanical Properties Of Hastelloy X Flanges
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.22 g/cm³ | 1355°C | 655 MPa | 240 MPa | 35% |
Manufacturing Process of Hastelloy X Flanges
Hastelloy X Flanges Application
