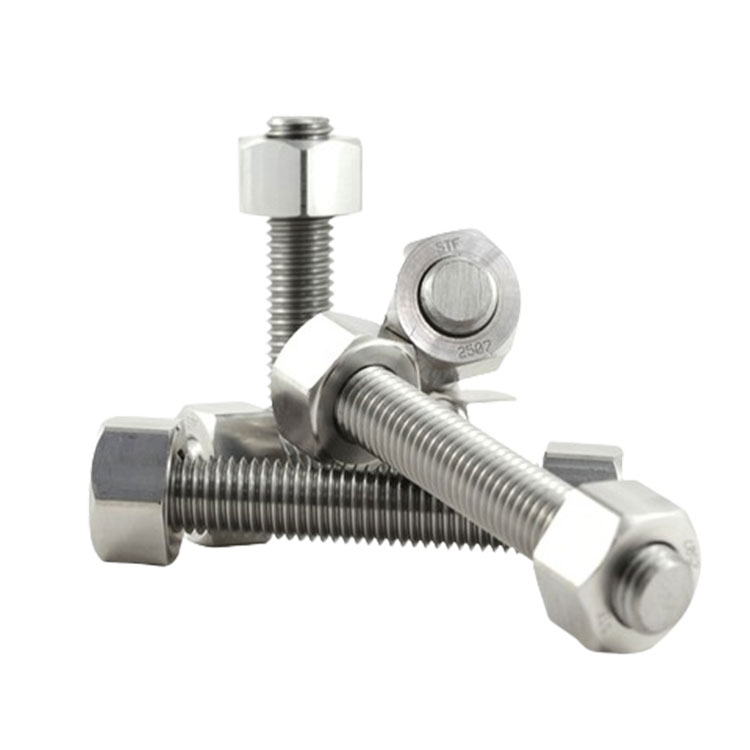

Incoloy 825 Fasteners
Metracore Alloys is a trusted incoloy 825 fasteners manufacturers in India, providing high-quality fastening solutions for global industries. Our Incoloy 825 fasteners are well-known for their strength and corrosion resistance. These fasteners are comprised of a nickel-iron-chromium alloy that includes copper, molybdenum and titanium to boost performance in hostile situations. Using advanced processes like wire drawing, cold heading, insert tapping, heat treatment, surface plating, and strict inspections, we ensure durability and precision in every product. We provide reliable products built to meet demanding standards.
Incoloy 825 Fasteners Manufacturers in India, Incoloy 825 Fasteners Suppliers
Alloy DIN 2.4858 fasteners have ability to withstand oxidizing and reducing conditions, along with resistance to stress-corrosion cracking. They maintain service strength up to 540°C, making them suitable for high-temperature operations. The range includes incoloy 825 bolts for secure mechanical joints, incoloy 825 nuts for strong thread connections, and incoloy 825 screws designed for precise assemblies. Also available are studs and threaded rods for structural use, along with incoloy 825 washers that distribute loads evenly and prevent surface damage. Each type has a unique purpose and provide dependable performance.
ASME B18.2.1 Alloy 825 fasteners are available in sizes ranging from 3 mm to 200 mm, with bolts and screws offered in M3 to M56, nuts in M3 to M56, and washers in M1 to M64. Lengths range from M02 to M33, with head styles including slotted, six-lobe, and Phillips. Threads come in UNF, UNC, BSW, metric, and BSF options. With flexible sizing and adherence to industry norms, UNS N08825 fasteners are used in chemical plants, oil refineries, marine systems and pollution control equipment. They are built to withstand aggressive environments while delivering consistent performance.
Incoloy 825 Fasteners Manufacturers, ASTM B425 Incoloy 825 Fasteners Stockist and Distributor, Incoloy 825 Fasteners, Incoloy 825 Nuts, Incoloy 825 Bolts, Incoloy 825 Washers, Incoloy 825 Screws
Each fastener go through quality testing at every stage of production. Our fasteners meet ASME B18.2.2, ASME B16.5, ASME B18.5 and ANSI B18.2.4 2M standards. Each batch is backed by certifications for authenticity and performance. Packaging is handled with care to avoid damage during transit. Our timely delivery ensure smooth supply to clients worldwide. As a trusted incoloy 825 fasteners suppliers, we provide these solutions with a focus on reliability and efficiency. Contact us for durable Incoloy N08825 fasteners that provide strength and performance.
- Incoloy 825 Fasteners Specification
- Types of Incoloy 825 Fasteners
- Technical Details of Incoloy 825 Fasteners
- Equivalent Grades of Incoloy 825 Fasteners
- Incoloy 825 Fasteners Chemical Composition
- Incoloy 825 Fasteners Mechanical Properties
- Manufacturing Process of Incoloy 825 Fasteners
- Incoloy 825 Fasteners Application
Incoloy 825 Fasteners Specification
Standard
ASTM B425 / ASME SB425
Dimensions
DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3
Sizes in Stock
M3 - M100 | 3/6″ - 4″
Standard
DIN, ISO ,JIS ,GB, IS, BS, ASTM and all International Standards
Threads available
UNF, BSW, BSF, METRIC, UNC, or as required
Threads Configuration
ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
Forms
Hex, Threading, Square, Round as per Gauge Etc.
Head
Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc.
Types of Incoloy 825 Fasteners
Incoloy 825 Bolt
Incoloy 825 Nuts
Incoloy 825 Screws
Incoloy 825 Washers
Incoloy 825 Stud Bolt
Incoloy 825 Threaded Rod
Incoloy 825 Anchor Bolt
Incoloy 825 Hex Bolt
Incoloy 825 Hex Nut
Reach out to Metracore Alloys for reliable Incoloy 825 Fasteners solutions
Technical Details of Incoloy 825 Fasteners
Equivalent Grades of ASTM B425 Incoloy 825 Fasteners
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA 16 | ЭП703 | NFE30C20DUM | NiCr21Mo | XH38BT |
Chemical Composition of Incoloy 825 Fasteners
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
Mechanical Properties Of Incoloy 825 Fasteners
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
Dimensions of Incoloy 825 Fasteners
| Nominal Size Of D | Diameter Of Body | Head Thickness | Flats Acro | Corners Acro | ||||
|---|---|---|---|---|---|---|---|---|
| D (MAXIMUM) | D (MINIMUM) | H (MAXIMUM) | H (MINIMUM) | F (MAXIMUM) | F (MINIMUM) | C (MAXIMUM) | C (MINIMUM) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Size Chart Of Incoloy 825 Fasteners
Size Of Nut (millimeter) |
Diameter Of (millimeter) |
Height Table (millimeter) |
||
|---|---|---|---|---|
Hex Nut |
Jam Nut |
Nylock Nut |
||
2 |
4 |
1.6 |
1.2 |
– |
2.5 |
5 |
2 |
1.6 |
– |
3 |
5.5 |
2.4 |
1.8 |
4 |
4 |
7 |
3.2 |
2.2 |
5 |
5 |
8 |
4 |
2.7 |
5 |
6 |
10 |
5 |
3.2 |
6 |
7 |
11 |
5.5 |
3.5 |
– |
8 |
13 |
6.5 |
4 |
8 |
10 |
17 |
8 |
5 |
10 |
12 |
19 |
10 |
6 |
12 |
14 |
22 |
11 |
7 |
14 |
16 |
24 |
13 |
8 |
16 |
18 |
27 |
15 |
9 |
18.5 |
20 |
30 |
16 |
10 |
20 |
Manufacturing Process of Incoloy 825 Fasteners
Incoloy 825 Fasteners Application
